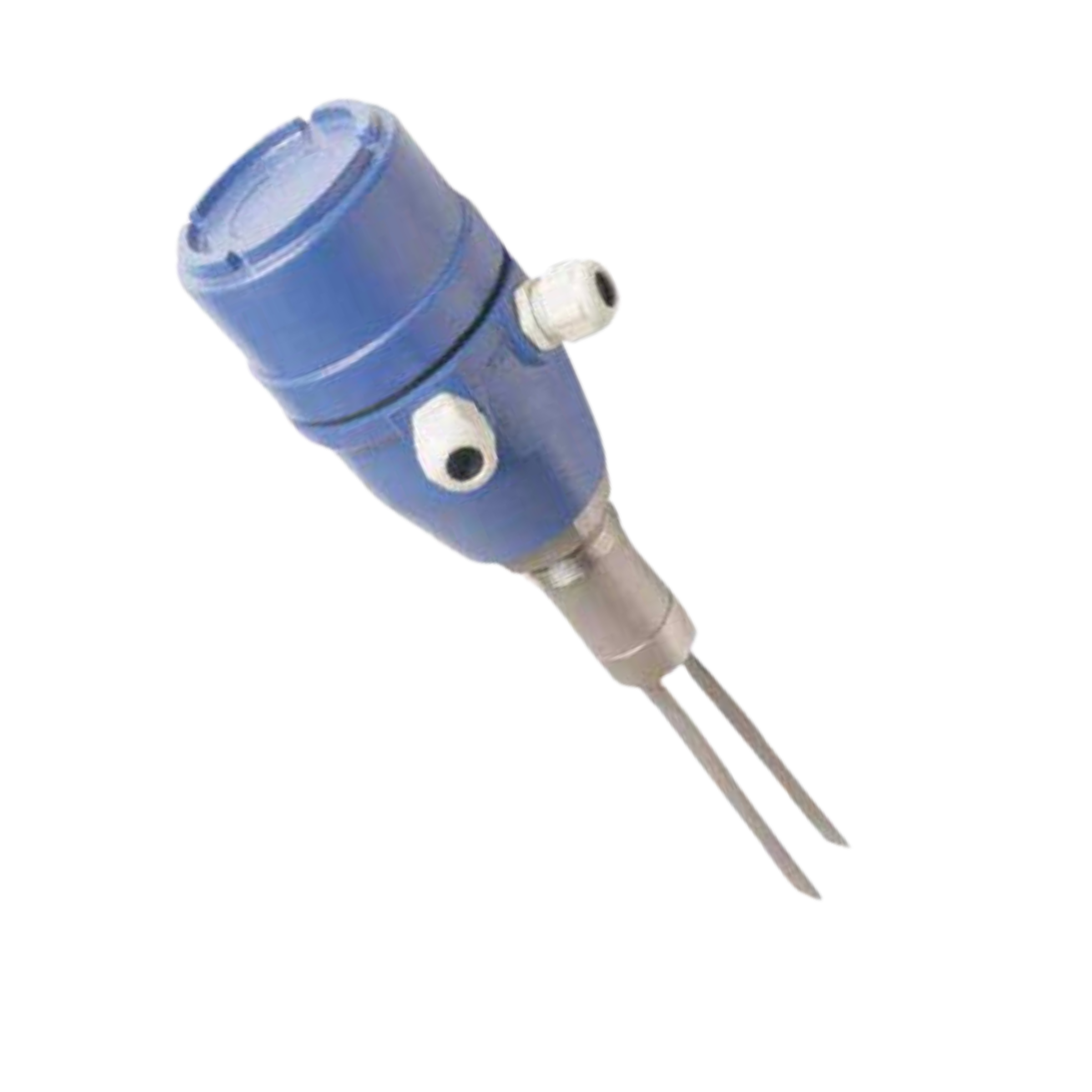

Vibrating Fork | Rod Level Switch
Vibrating Fork | Rod Level Switch
Get quality, reliability, and value in one go!
Piezoelectric driven vibration level switch is a highly reliable device used to detect high, mid and low levels in vessels with powders and bulk solids. It helps ensure consistent material flow and prevents overflows or dry running of pumps. Ideal for use in various industries, this level switch provides accurate and real-time feedback on material levels, which means optimal system performance and less risk of damage to equipment..
Request a Quote
Industries Served How It Works
It operates on the basis of vibration. The electric signal excites the first piezo crystal, causing it to expand and contract rapidly. This makes the blades or rod vibrate at a specific frequency.
The blades are designed to use minimal energy while vibrating. The second piezo crystal monitors this vibration. When the blade comes into contact with the material, the vibration is dampened. The electronic circuit forces a relay to switch indicating a covered condition. When the blades are uncovered, the vibration will restart and the relay will indicate an uncovered condition.
Specifications
Preferred Applications: Solids, Liquids, and Slurries
Operating Temperatures: –40°C to +300°C
Operating Pressure: –0.2 to 10 bar
Signal Output: 2 x SPDT Relay Contacts / 1 x DPDT Relay Contact
Supply Voltage: 20 to 32 VDC/ 110 VAC/ 230 VAC
Power Consumption Max 6 W @ 24 VDC
Material Density: 2 lb./cu. ft. to over 100 lb./cu. ft.
Safety: Explosion Proof and Intrinsically Safe Variant Available
