Ultrasonic Transit Time Flow Meters
Ultrasonic Transit Time Flow Meters
Get reliable flow monitoring with zero hassles!

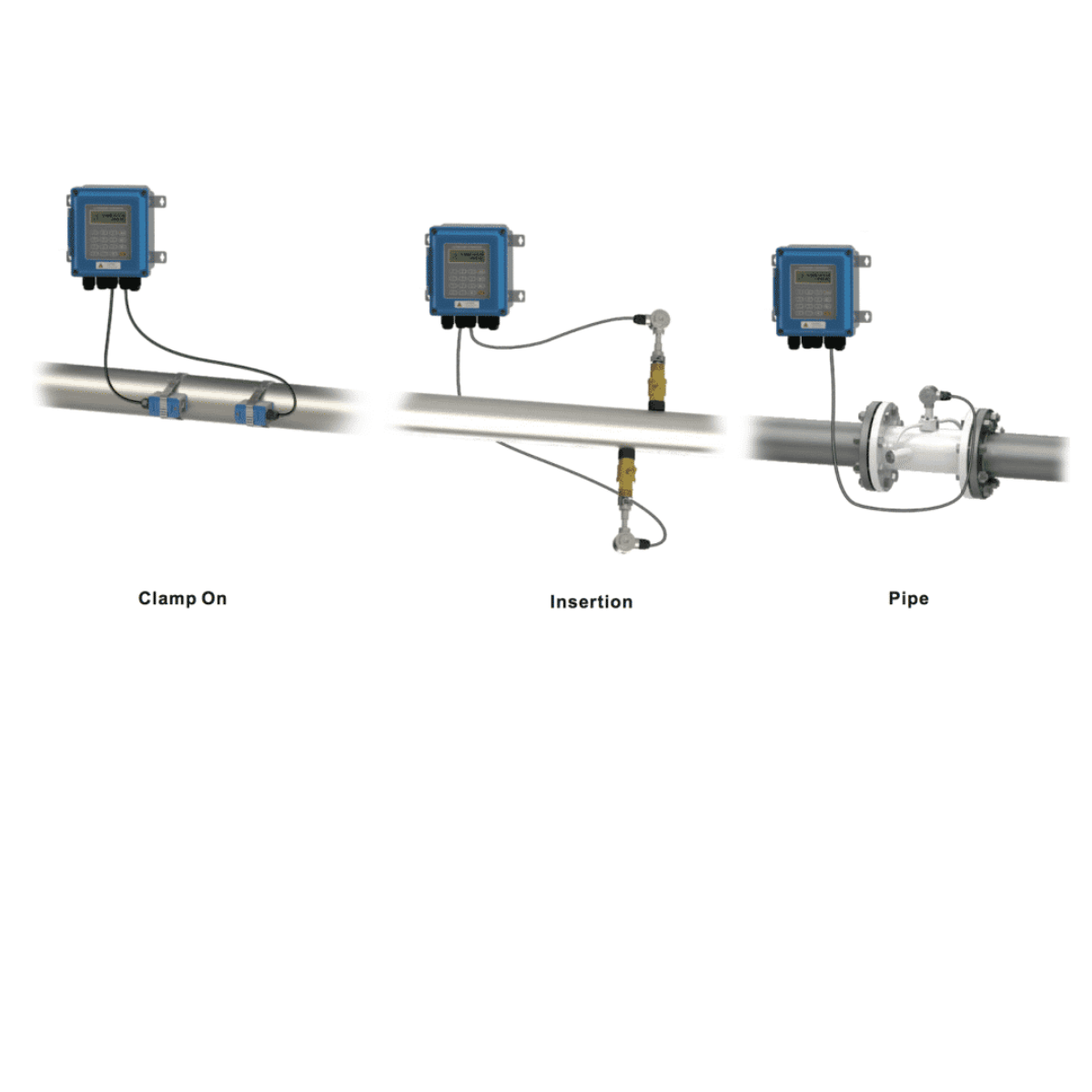

The Ultrasonic TTFM (Transit Time Flow Meters) are specialized devices designed to measure flow across a wide range of pipe sizes. They offer various sensor options, including Clamp-On, Insertion, Pipe, and Portable types. With advanced software algorithms, these flow meters deliver unmatched accuracy in flow measurement.
Request a Quote
Industries Served How It Works

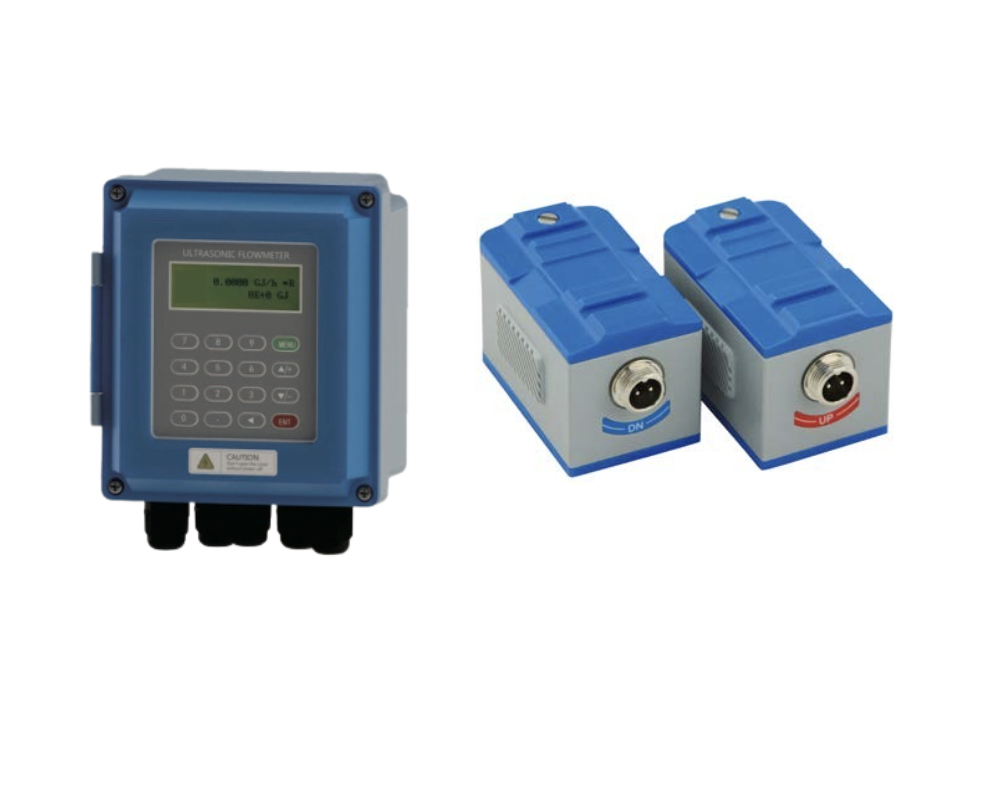

The TTFM100 New Generation (NG) Transit Time Flow Meter measures flow rate by calculating the time it takes for an ultrasonic wave to travel upstream and downstream within a pipe.
This flow meter is ideal for measuring the flow of homogeneous fluids, even those with a high percentage of suspended solids. It consists of two ultrasonic transducers that are acoustically coupled to the pipe’s outer wall, although wetted sensors in direct contact with the fluid can also be used. The HOST unit processes the signals sent and received by the transducers and uses a DSP microprocessor to send signals to control or process systems.
Specifications
Preferred Applications: Solids, Liquids and Slurries
Measuring Range: Up to Pipe Line Size of 6000 mm
Process Temperatures: –40°to +160°C
Process Pressure: –0.2 to 20 bar
Signal Output: 4-Wire with 4 – 20 mA
Supply Voltage: 110 VAC/ 230 VAC
Power Consumption: Max 6 W @ 24 VDC
