Silo Pilot Level Transmitter
Silo Pilot Level Transmitter
Accurate level measurement for reliable inventory management!

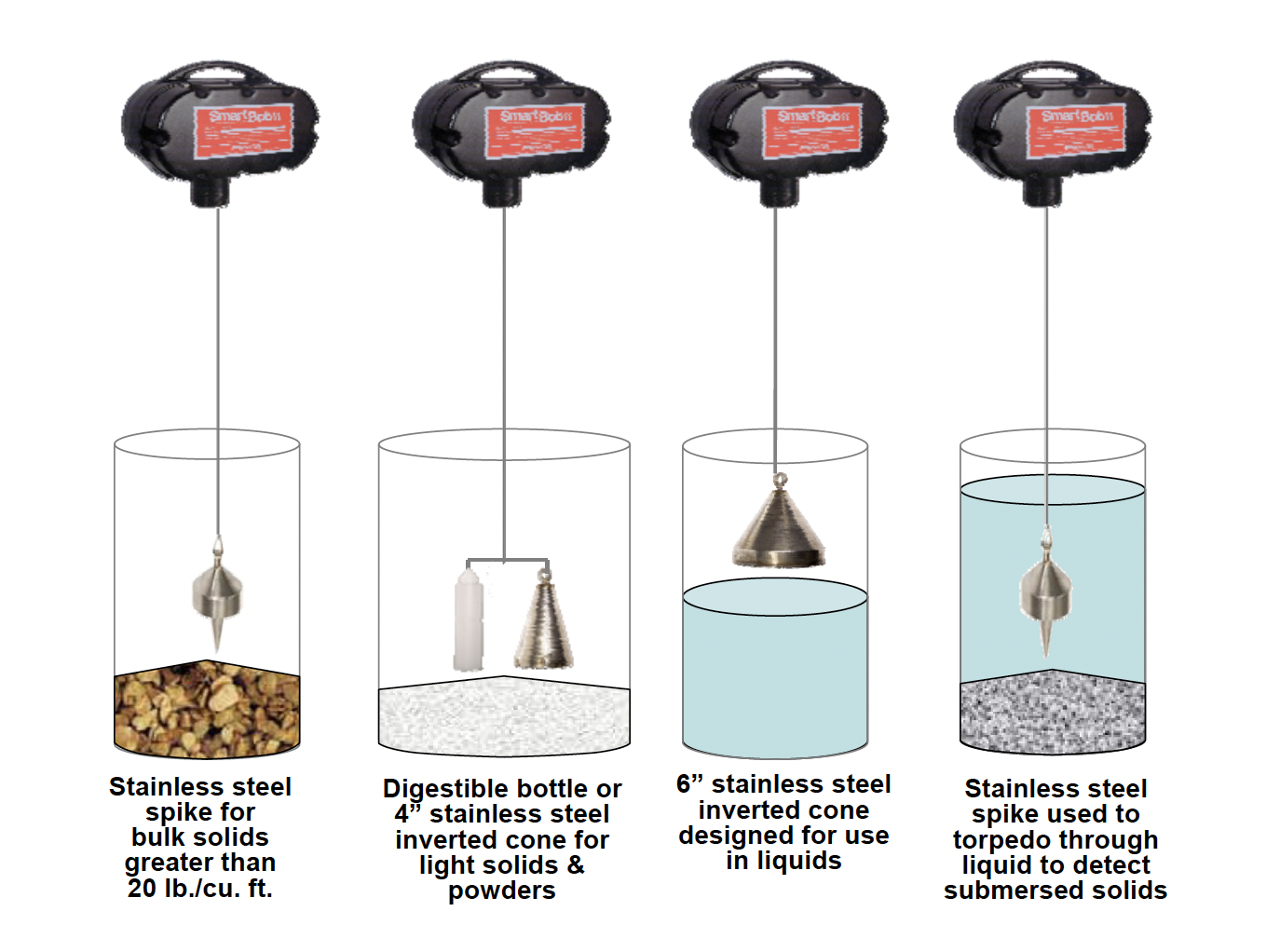

The Electro-Mechanical Silo Pilot Level Transmitters are one of the earliest technologies used for continuous level measurement. Many customers still prefer them due to their sturdy design and easy maintenance. A standout feature of our Silo Pilot is its ability to measure solids that are submerged in liquids.
Request a Quote
Industries Served How It Works

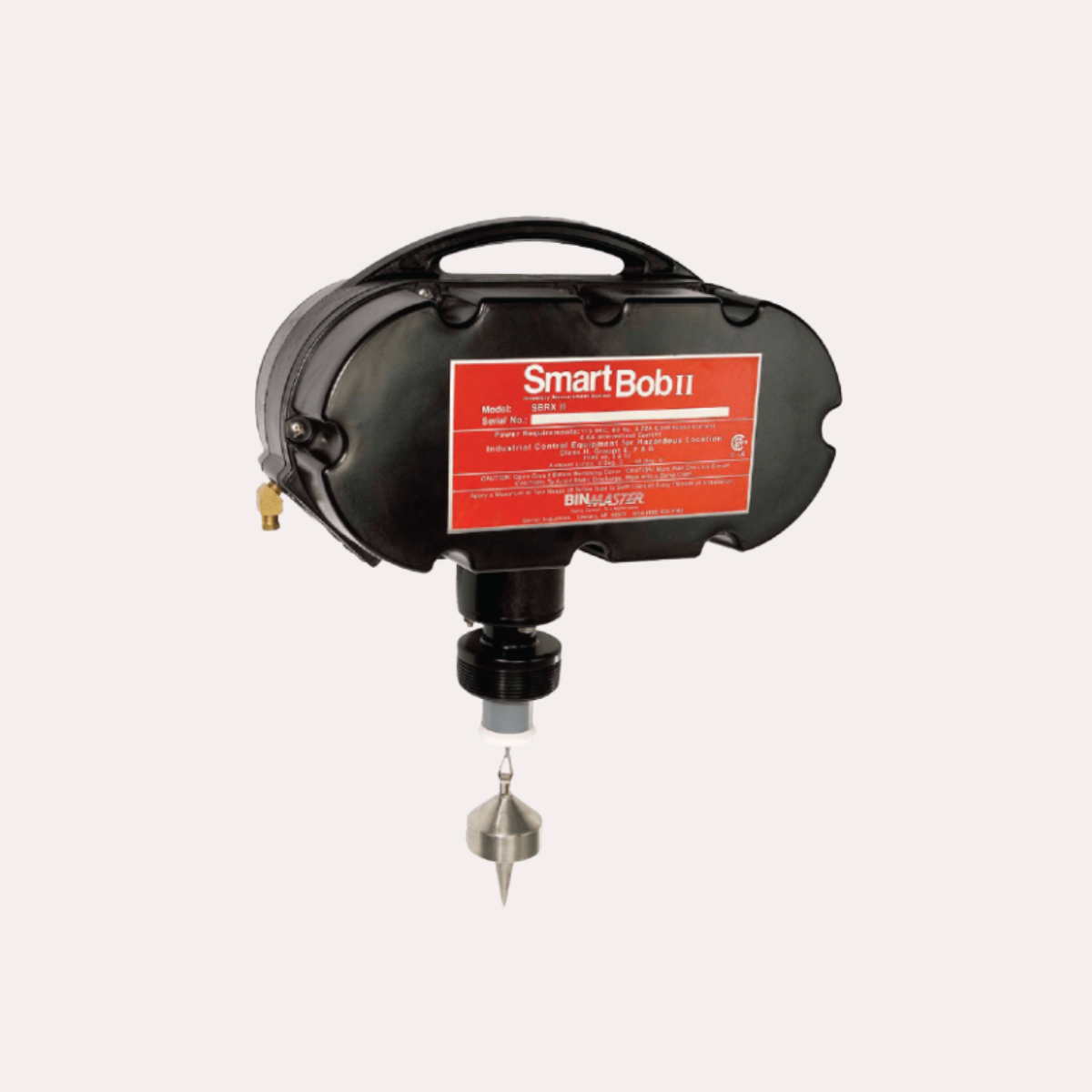

The SmartBob AO is equipped with a built-in 4-20 mA output and an integrated keypad, allowing for straightforward replacement of any existing 4-20 device. Installation is simple; the SmartBob can be mounted on top of the bin and connected to the existing 4-20 input. Upon taking a measurement, it automatically transmits updated measurement data to a PLC. It can be programmed to perform measurements at predetermined intervals using an internal timer, or an external start input can be utilized for immediate readings. In addition to that, the device includes two configurable relay outputs to notify users of measurement status or to signal high, low, or error alarms
Specifications
Power Requirements: 115/230 VAC 50/60 Hz
Ambient Temp: –40°F to +185°F (-40°C to +85°C)
Process Temp: Up to 500°F (260°C)
Measurement Range: Up to 55 meters
Measurement Rate: 2 feet per second
Accuracy: ± 0.25% distance measurement accuracy
Mounting: As per customer requirement
Enclosure Molded polycarbonate
Approvals & Certifications: Listed for Class II, Groups E, F, & G Hazardous Locations
Enclosure Type: NEMA 4X, 5 & 12
