Guided Wave Radar–Level Transmitter
Guided Wave Radar–Level Transmitter
Accurate level measurement for critical fluids

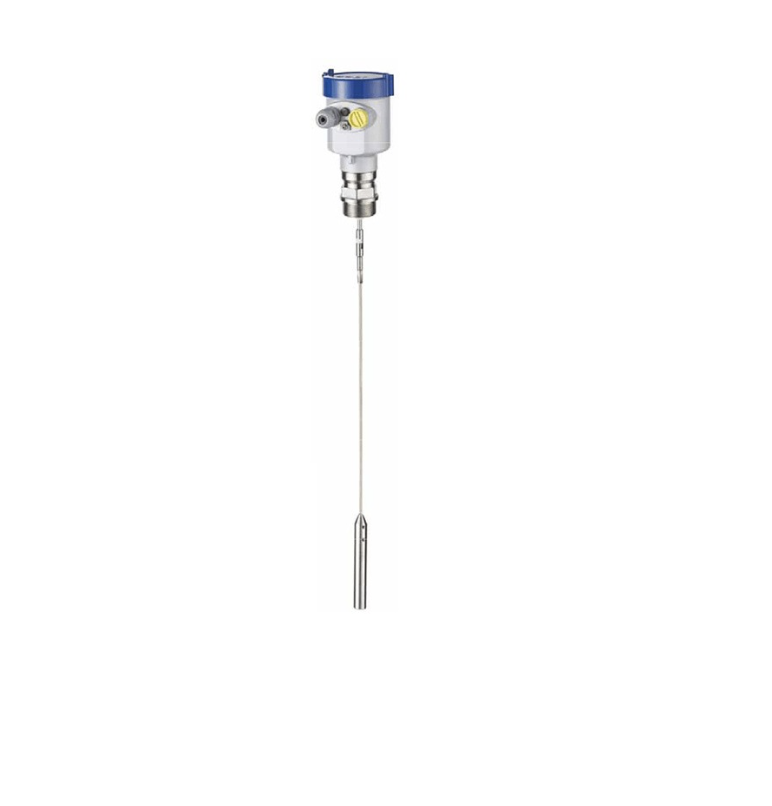

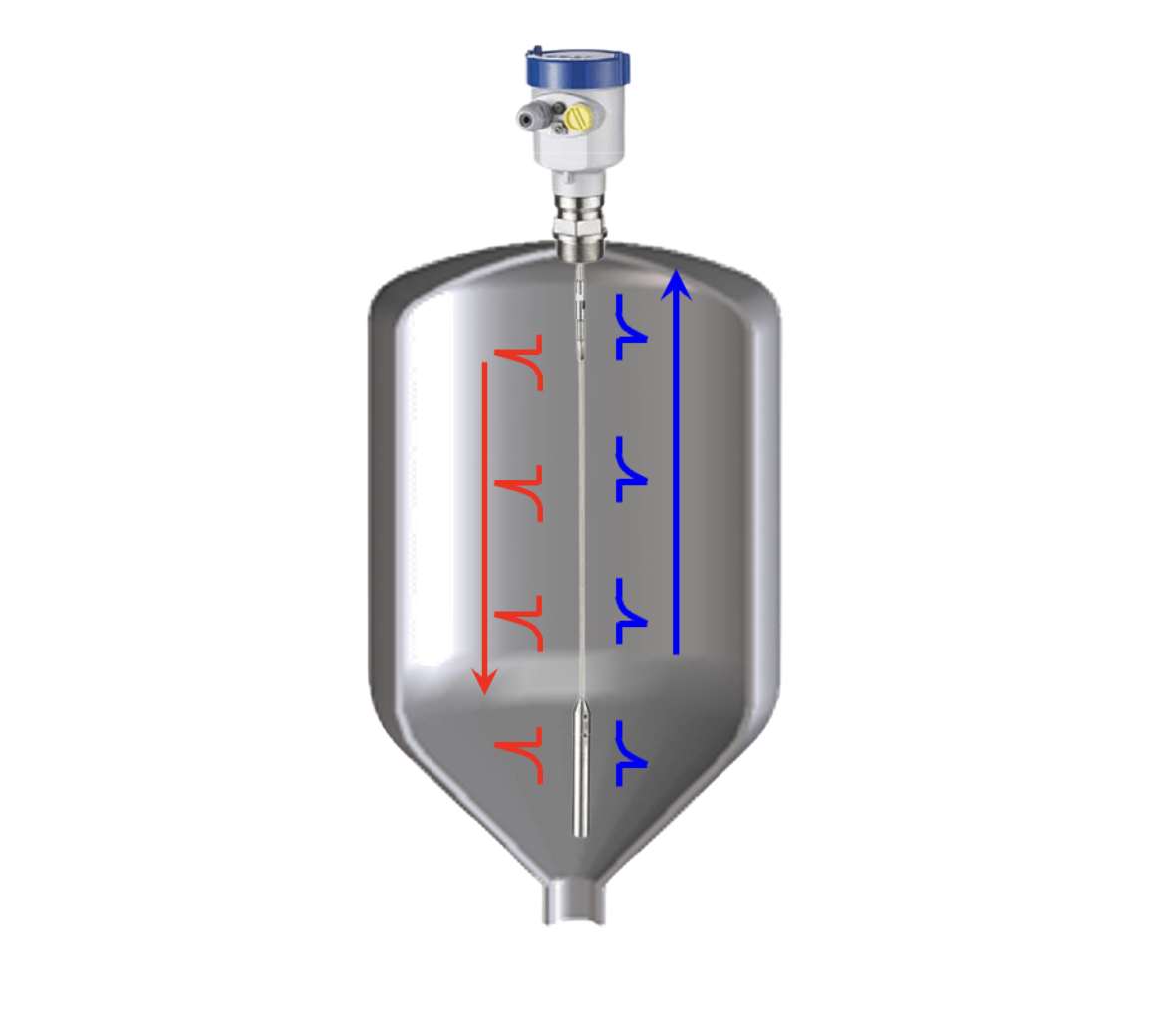

High-frequency microwave pulses transmitted by the guided wave radar propagates along the detector component (wire cable or steel bar), and are reflected on the surface of the medium. After reaching the dielectrics to be measured, part of the pulse energy is reflected. The time interval between the emission of the pulses and their arrival is proportional to the distance between the surface of the medium and the reference plan of the instrument. The instruments have a low consumption; it can be installed on metallic or non metallic tanks. Their use is not harmful to humans or environment.
Request a Quote
Industries Served How It Works
Guided Wave Radar utilizes time domain reflectometry (TDR) to continuously measure the distance, level, and volume of powders or solids in bins, tanks, and silos. This sensor features hazardous location approvals, a very small upper dead zone, and assures highly accurate level measurement in low dielectric materials down to 1.3. It has 4 -20 mA making it compatible with your HMI or PLC
Specifications
Power Requirements: 2 Wire 24 VDC Loop Powered
Ambient Temp: –40°F to +185°F (-40°C to +85°C)
Process Temp: Up to 400 Degree C
Measurement Range: 32m
Measurement Rate: Less than 1 Sec
Accuracy: ± 3mm
Mounting: As per customer requirement
Enclosure Die Cast Aluminum
Approvals & Certifications: Explosion Proof Hazardous Zone
Enclosure Type: IP67
Download our catalog for all the information you need!
