3D Radar Level Transmitter
3D Radar Level Transmitter
Get real-time inventory tracking, as if you had a camera inside the silo!
Our 3D Radar Level Transmitters measures at multiple points inside the Silo / Bin and Stockpiles and solves the most critical of the problems for measurement of Level and Volume inside Silos storing Bulk Solids and Powders.
Major Challenges of Level and Volume Measurement of Bulk Solids and Powders
- Uneven Surface Profile of the material
- Heavy Dust Inside the Silo
- Multiple Evacuation Points from the Silo
- Maintenance of Device
- Low Dielectric of the Material

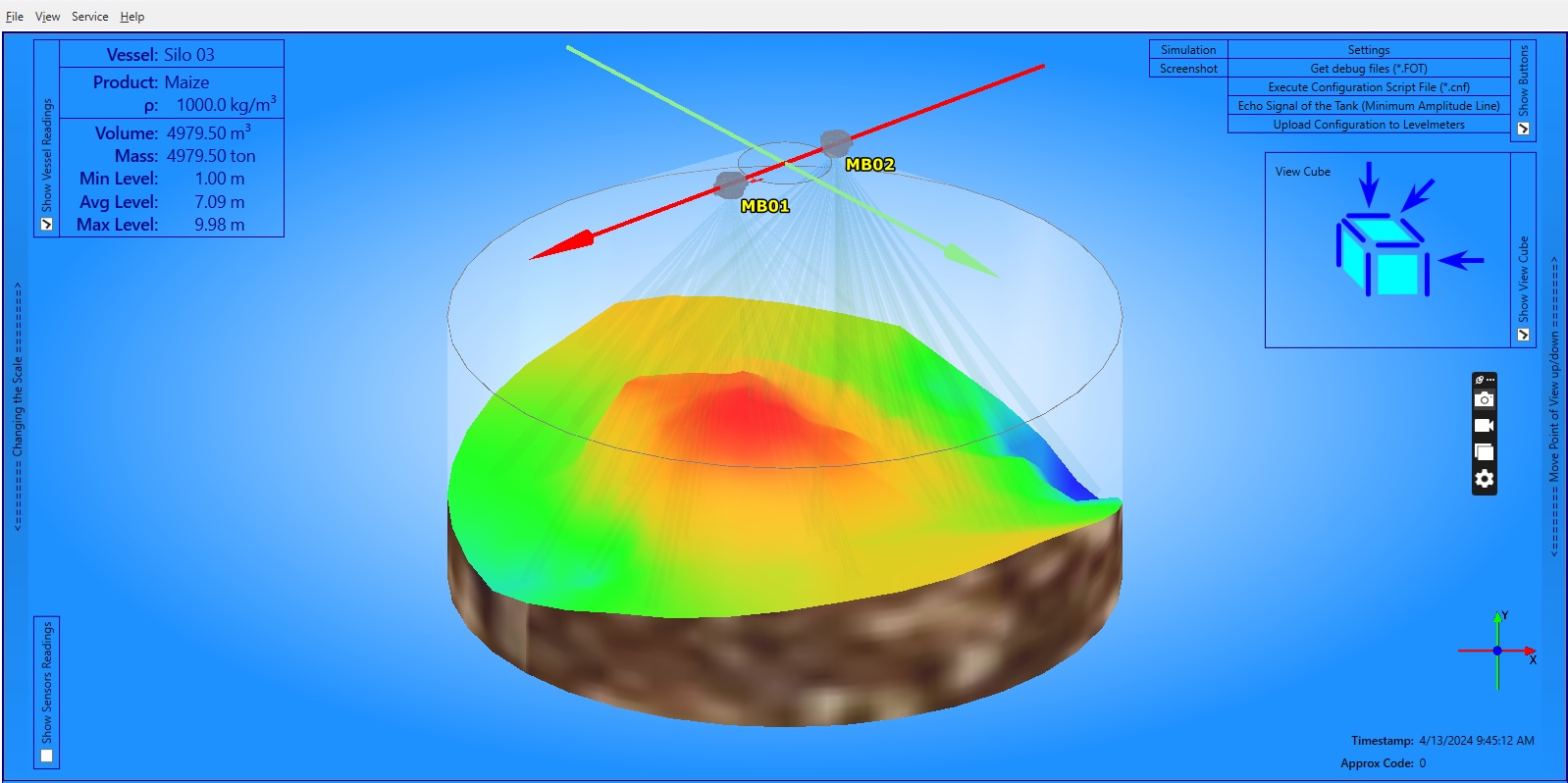

Our 3D Radar Level Transmitter provides Average, Maximum, and Minimum levels, as well as Volume, Mass, and a Real-Time 3D profile of stored materials.
Request a Quote
Industries Served How It Works
It works by emitting radar waves at 5 or 64 different points (depending on the variant) towards the material in the silo or bunker. With multiple beams, the transmitter creates a 3D image of the surface, allowing it to measure the material even more accurately.
Additionally an operating frequency of 140 GHz allows the 3D Radar to work uninterrupted in a heavy dust environment without Air Purge and hence making the solution maintenance free
3D Radar comes in two variants:
(a) 5 Beam Radar: World’s first 3D multi-beam radar with 5 measurement points
(b) 64 Beam Radar: Single 3D Radar having 64 simultaneous measurement points
Specifications
Preferred Applications: Powders and Solids
Measuring Range: 100 meters
Operating Temperatures: –40°C to +400°C
Operating Pressure: -1 to 20 bar
Signal Output: 4-wire 4 – 20 mA/HART/RS-485 Modbus
Number of Beams 5 or 64 Simultaneous Beams
Emitting Frequency 140 GHz for each beam
Supply Voltage 20 to 32 VDC (110/ 230 VAC through SMPS)
Power Consumption Max 8 W @ 24 VDC
