3D Laser Scanner for Fixed Mounting
3D Laser Scanner for Fixed Mounting
Get precise data and real-time 3D profile of your inventory!
The 3D Laser accurately measures and maps material inside stockpiles, creating real-time 3D profiles and calculating volume and mass based on density. With an average of 10,500 point measurements per scan, it ensures high accuracy for hard and soft bulk materials. Its proprietary software provides instant results, reports, and a user-friendly interface, requiring no additional calibration.
Request a Quote
Industries Served How It Works

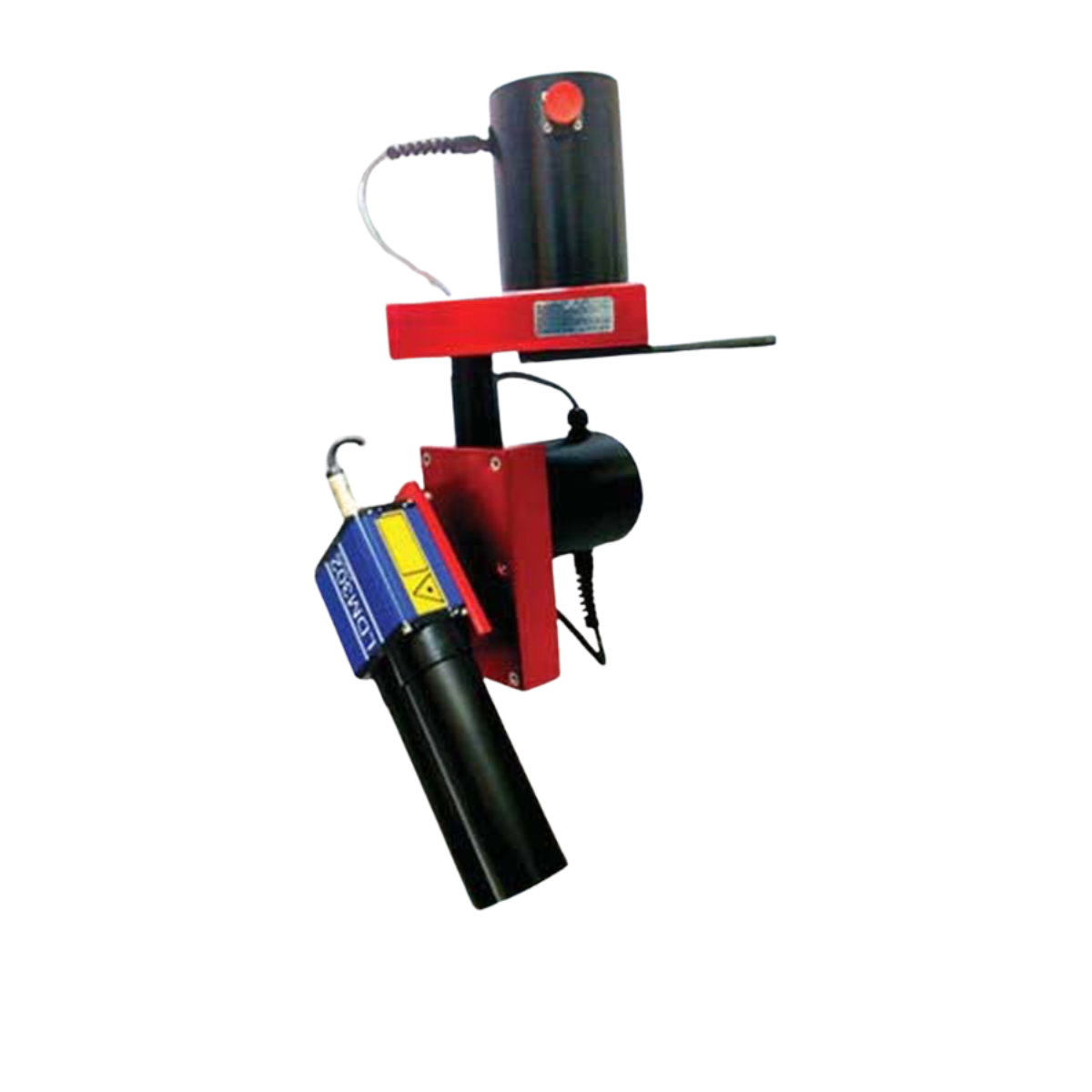

It consists of a laser scanner mounted with two servo motors and encoders that rotate vertically and horizontally to scan the material’s surface. It takes an average of 10,500 point measurements per cycle, offering 1% accuracy when measuring both hard and soft bulk commodities in stockpiles.

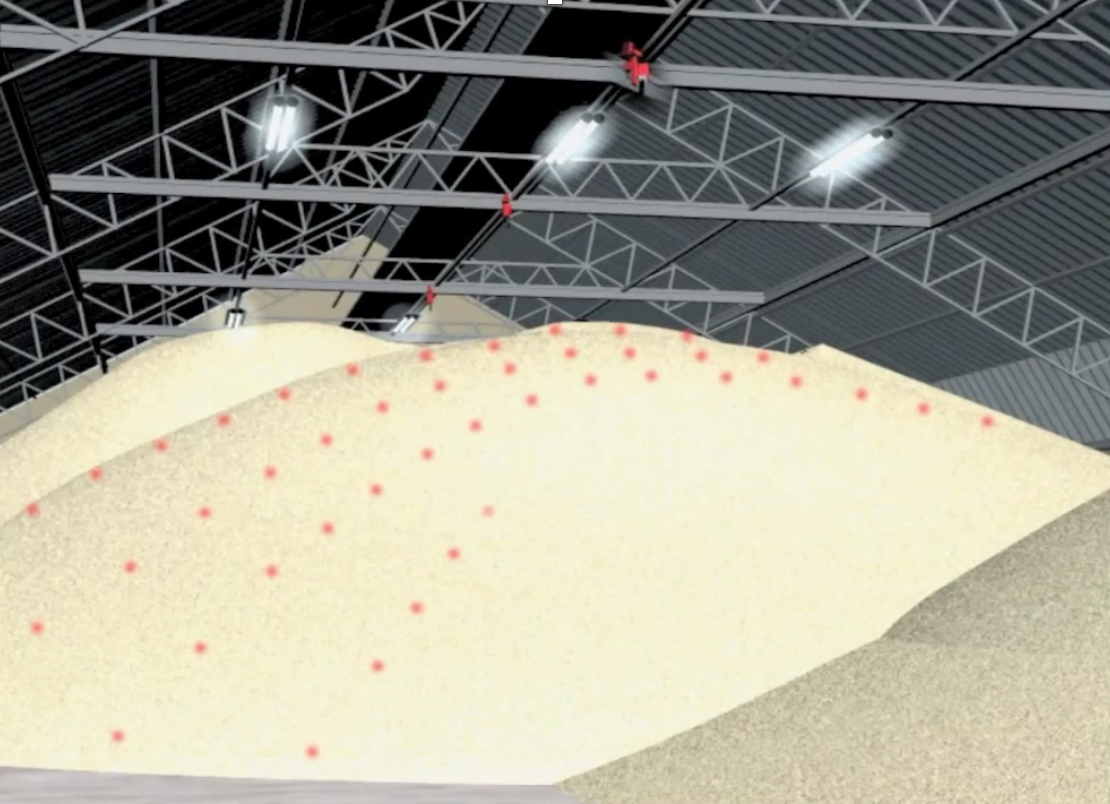

The software calculates volume, tonnage, and real-time 3D profiles, automatically filtering irregular points and generating instant Excel reports. Mounted on fixed structures, the scanner wirelessly sends data to the control room, with a self-diagnostic feature ensuring reliable readings. Multiple scanners can be deployed for complete stockpile coverage.
Specifications
Power Supply: 12 to 30 VDC/ 220 VAC
Operating Temperature: –40°C to +60°C
Humidity: Up to 90%
Protection: IP 67
Mounting: Fixed Pole Mounting for Complete Coverage of Stockpile
Wavelength: 905nm (Invisible Range)
Measuring Range on Natural Surface >6% Reflective: 0 to 200m
Measuring Range on Reflective Surface > 80% Reflective: 0 to 500m
Measuring Range on Reflector Surface: 0 to 3000m
Communication: Wireless
Class: Class I Laser Device
Coverage: Covers Entire Area of Stockpile with 10500 Points Scanned in 1 Scan
Output: Volume, Mass and 3D Profile
