3D Acoustic Level Scanner
3D Acoustic Level Scanner
Effortlessly measure the level and volume of bulk solids and powders in silos with accuracy and ease!

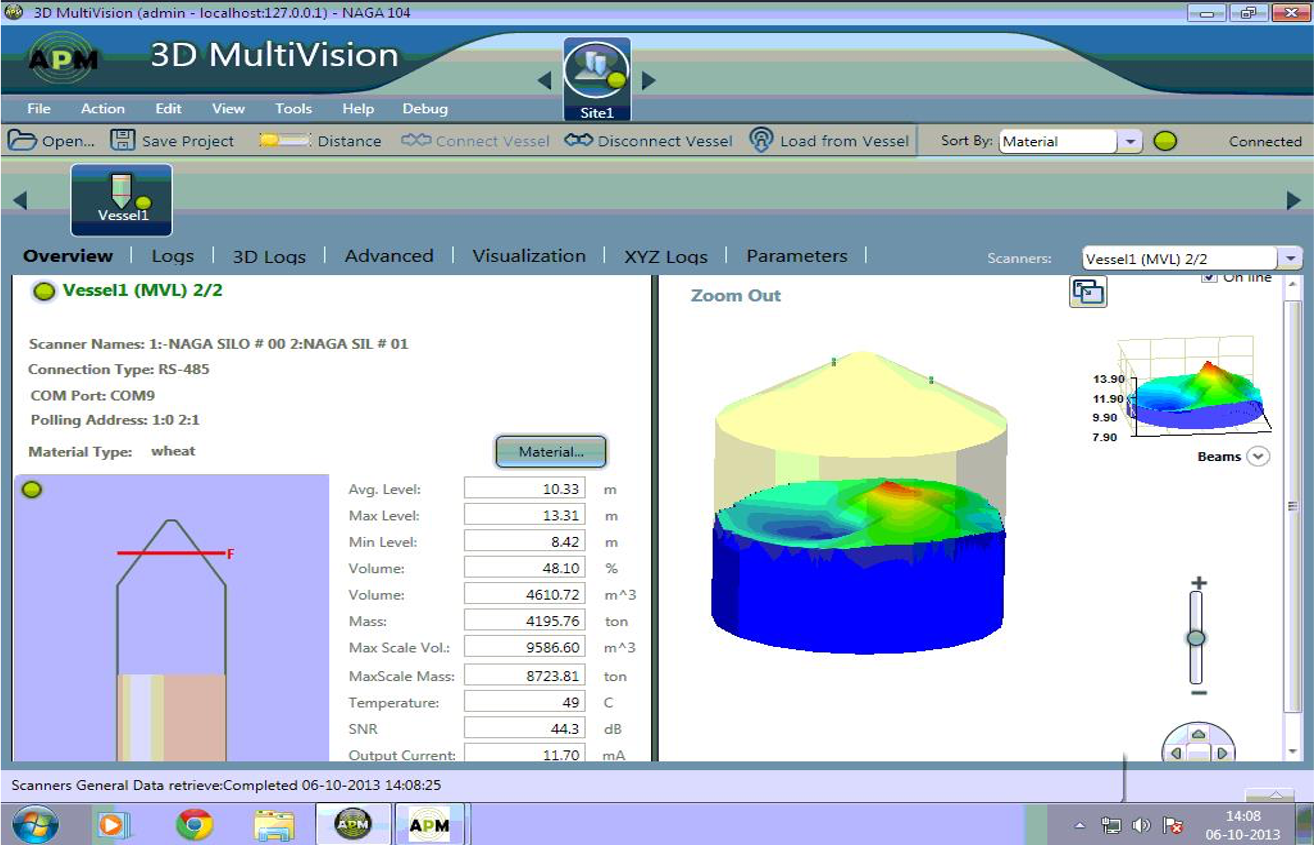

3D Level Scanner is an Acoustic continuous Level Transmitter that measures multiple points on a material’s surface, providing continuous, non-contact inventory volume measurement that accounts of irregular material topography. This advanced acoustic-based technology is proven to perform in powders and bulk solids contained in bins, silos, domes, warehouses, as well as open bunkers and piles. Unique 3D mapping capabilities provide a visual representation of bin contents, detecting cone up or down as well as sidewall buildup
The 3D Level Scanner solves the 3 major challenges of Level Measurement for Solids and Powders (where conventional methods are not able to solve the problem)
- Uneven profile due to angle of repose
- Heavy Dust
- Maintenance
Industries Served How It Works

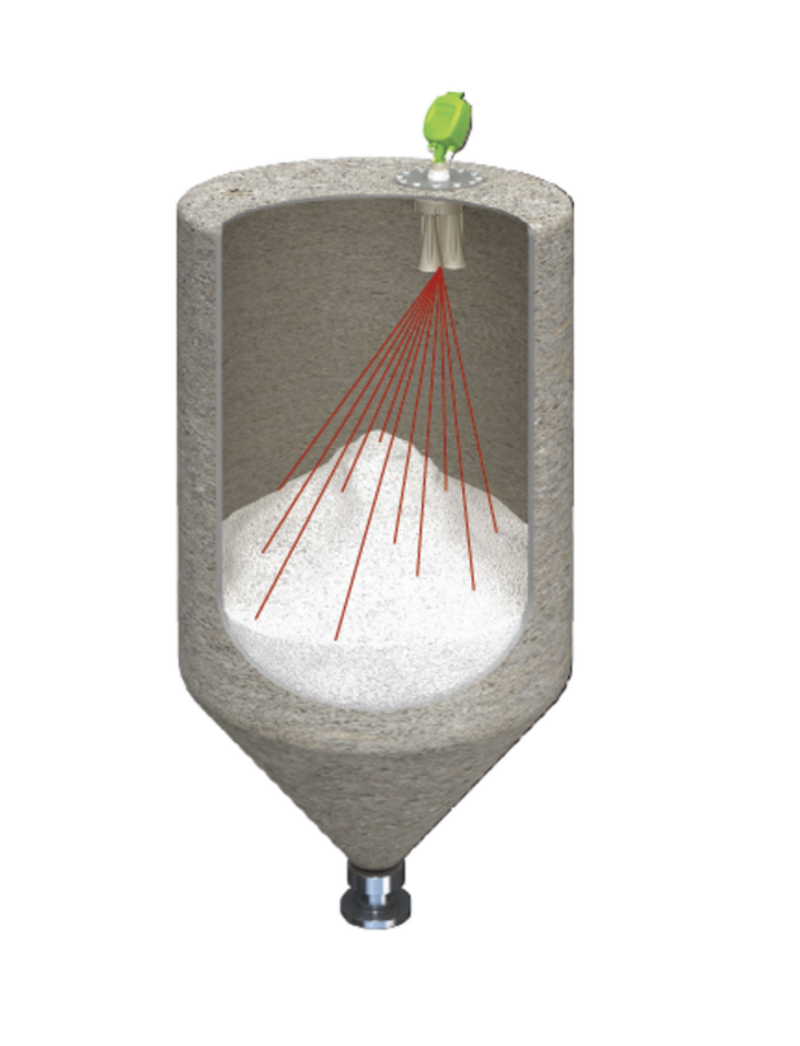

3D Level Scanner employs an array of 3 antennas to transmit low frequency pulses and to receive echoes of pulses from the contents of the silo, bin or other container. Using 3 antennas the unit measures not only the time / distance of each echo but also its direction with beam angle of 30-70 degree. The device’s digital signal processor samples and analysis they receive signals to provide very accurate measurements of the maximum level, minimum level, average level volume and mass of the stored contents and also generates a realtime 3D representation/ profile of the contents within the container Hoppers for display on remote computer screen.
The 3D LEVEL SCANNER working on the Low Frequency Acoustics have three major advantages
- Beam Angle of 70 Degree to cover the entire Silo Surface Area
- Works well with the Dusty environment (Based on Law of Diffraction)
- Self-Cleaning ability and does not require any air for cleaning.
Specifications
Preferred Applications: Powders and Solids
Measuring Range: 70 meters
Operating Temperatures: -40°C to +185°C
Operating Pressure: -0.2 to 3 bar
Signal Output Options 4-wire 4 – 20 mA/HART/RS-485/Modbus
Emitting Frequency: 2 KHz to 10 KHz
Supply Voltage: 20 to 32 VDC
Power Consumption: Max 1.5 W @ 24 VDC
Download our catalog for all the information you need!
